Lakes Classic Collection

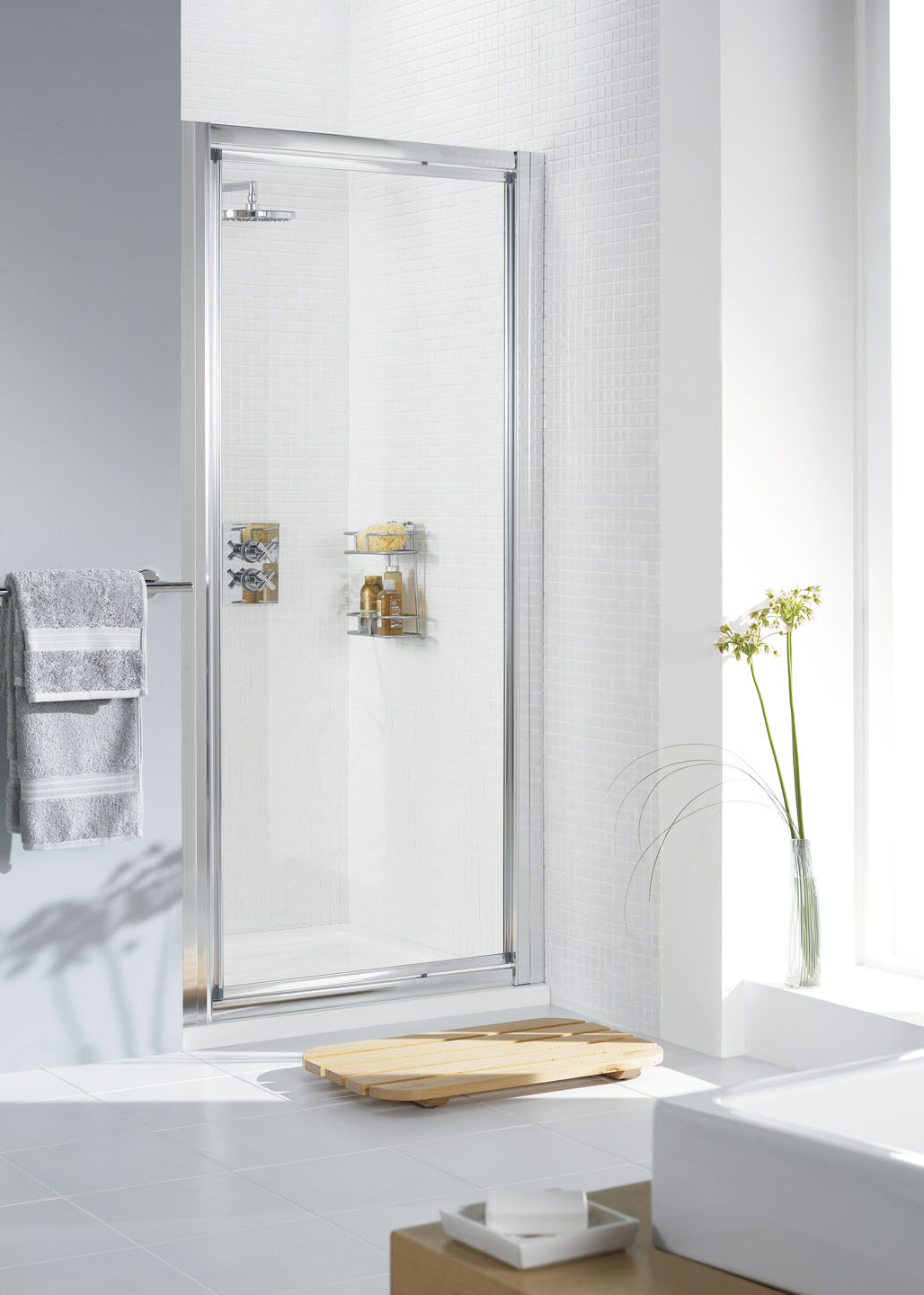

Framed Pivot Door
The Lakes Framed Pivot Door is available in 5 widths and 2 finishes. Manufactured to a high standard, this practical pivoting door means effortless showering and clean, uncluttered looks.
Suitable Applications:
Corner Shower Enclosures
Recess Shower Enclosures
Alcove Shower Enclosures
Flat Wall Shower Enclosures
Features:
Polished silver or white finish
Fully reversible
Minimum 6mm toughened glass
Easy installation
Lifetime guarantee
AllClear as standard
Technical Drawing
| Screen | (1 required) | ||||
| Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| 700 | 1850 | 660 – 720 | 450 | LK1P070 05 | LK1P070 30 |
| 750 | 1850 | 720 – 780 | 510 | LK1P075 05 | LK1P075 30 |
| 800 | 1850 | 760 – 820 | 490 | LK1P080 05 | LK1P080 30 |
| 900 | 1850 | 840 – 900 | 510 | LK1P090 05 | LK1P090 30 |
| 1000 | 1850 | 940 – 1000 | 590 | LK1P100 05 | LK1P100 30 |
| In-Line Panel | (Optional) | ||||
| Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| 350 | 1850 | 340 – 385 | – | LILPP350 05 | LILPP350 30 |
| Extension Profile | (Optional) | ||||
| Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| 30 | – | – | – | LEP 05 | LEP 30 |
| Side Panel | (Optional) | ||||
| Width (mm) | Height (mm) | Width Adjustment (mm) | Door Opening Size (mm) | Product Code (Silver) | Product Code (White) |
| 700 | 1850 | 660 – 720 | – | LK1SP070 05 | LK1SP070 30 |
| 750 | 1850 | 720 – 780 | – | LK1SP075 05 | LK1SP075 30 |
| 800 | 1850 | 760 – 820 | – | LK1SP080 05 | LK1SP080 30 |
| 900 | 1850 | 840 – 900 | – | LK1SP090 05 | LK1SP090 30 |
| 1000 | 1850 | 940 – 1000 | – | LK1SP100 05 | LK1SP100 30 |
